Bipod, 2nd Gen Standard 27" with Arca Clamp Head for Arca Rails

Bipod, 2nd Gen Standard 27" with Arca Clamp Head for Arca Rails

$539.99

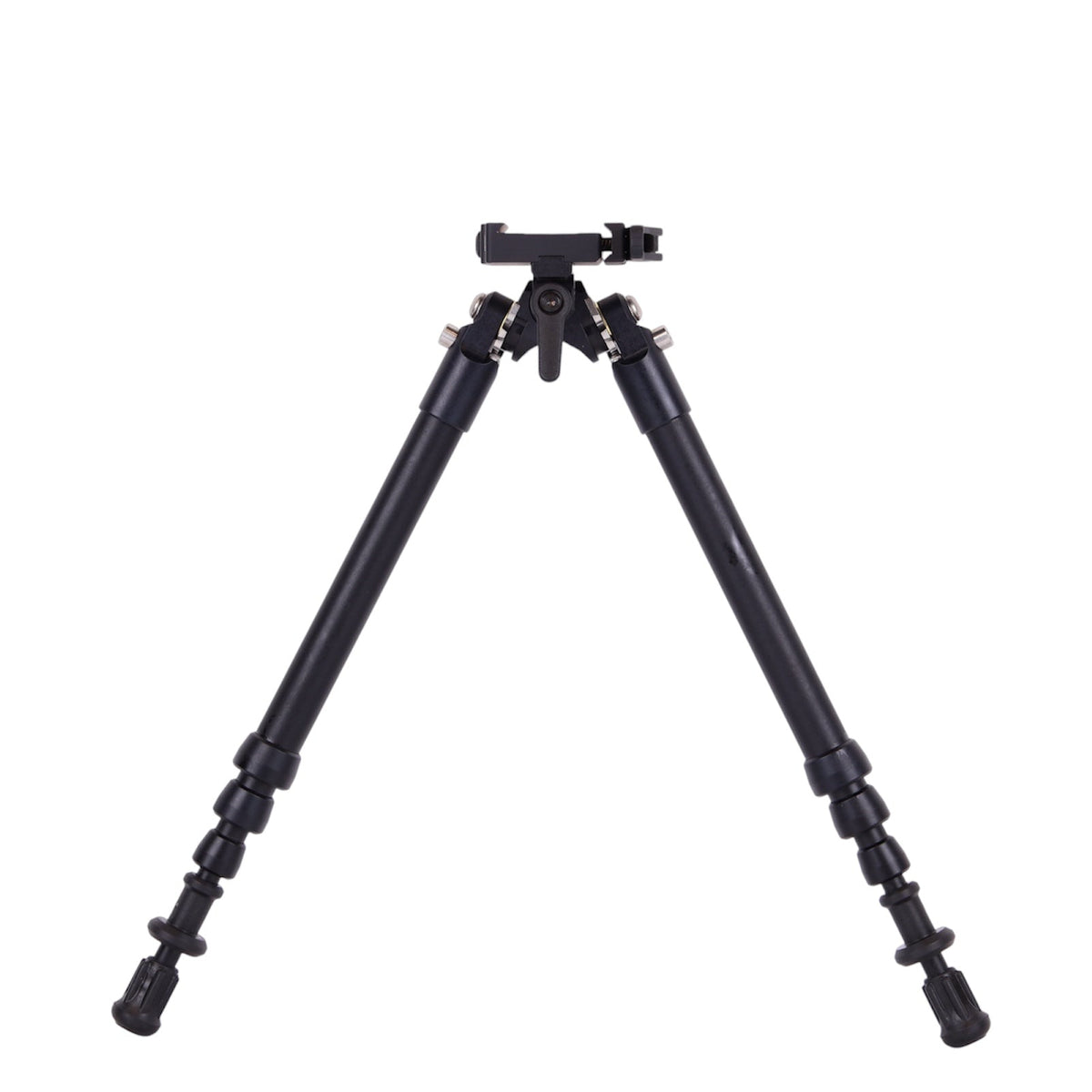

The Hatch Gen 2 Bipod is the most versatile, fastest deploying bipod on the market with the ability to shoot prone, sitting, and standing in a matter of seconds.

- The Hatch Gen 2 Bipod is more versatile and easier to use than ever before.

- Signature Hatch Micro-Adjustment feature on the two upper legs. (See Video: Micro-Adjusting off the Hatch Bipod is a Game Changer!!)

- Push-Button leg release for fast leg deployment.

- Lever Release for ease of spreading legs.

- Reversed head for increased adjustable cant.

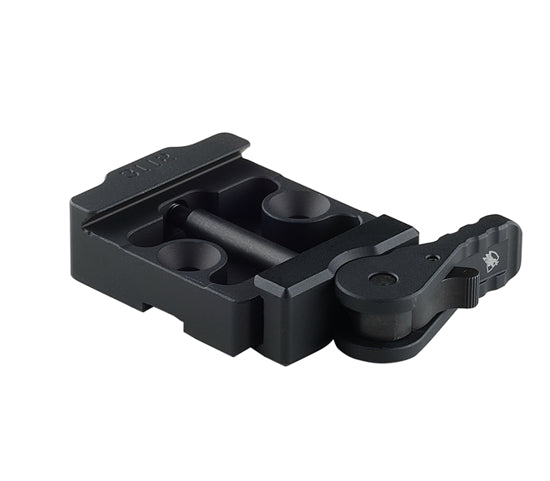

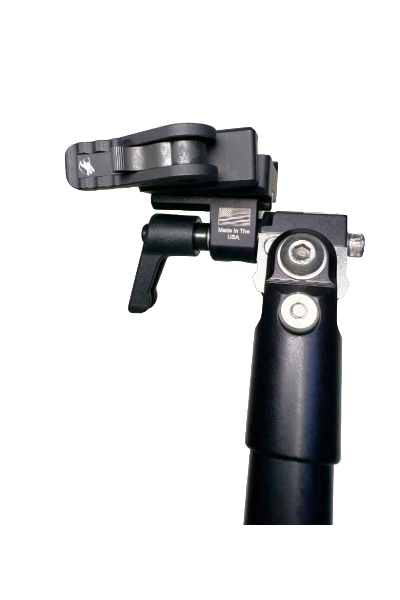

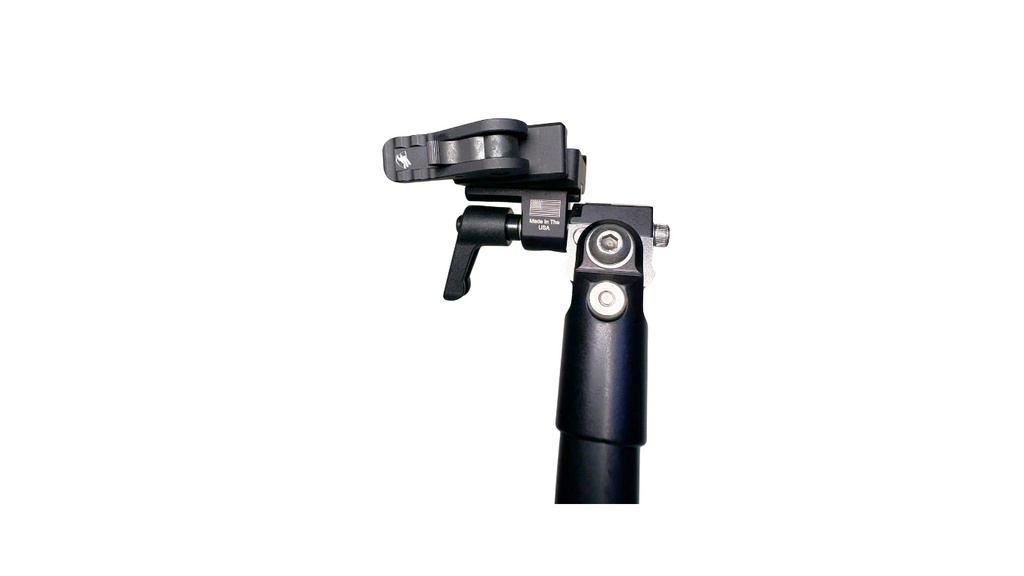

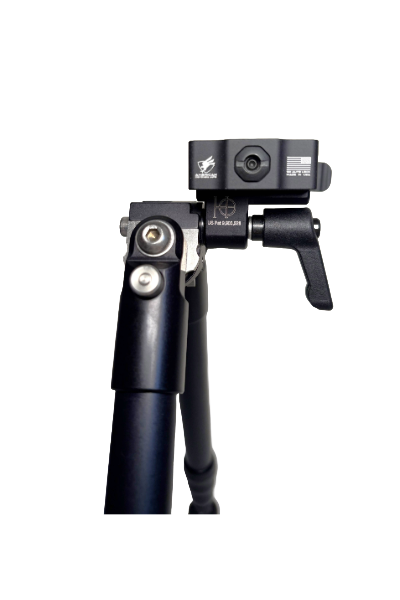

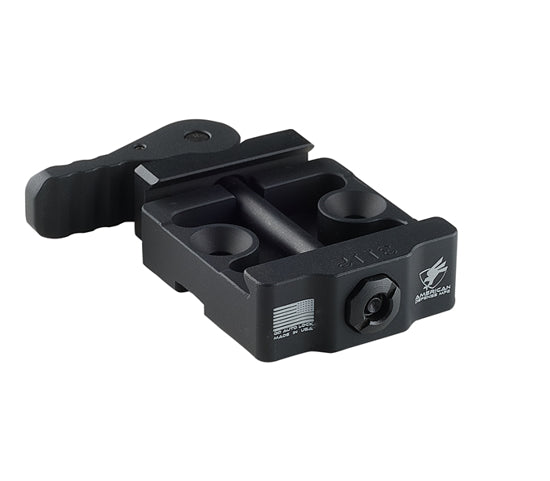

This model has an arca head made by American Defense Manufacturing. This allows the bipod to attach to different size ARCA rails due to the adjustable width, and then it clamps onto the rail. The special short throw lever design on this mount allows it to be loosened enough to slide the bipod to any position on an ARCA Rail while still retaining the mount to the rail. Special Note: Designed to fit 38mm ARCA rails, but is adjustable to fit larger widths such as 40mm also. The head is designed to slide on the arca rail and then locks with the lever. This head may not work with recessed arca rails that are built into the gun stock.

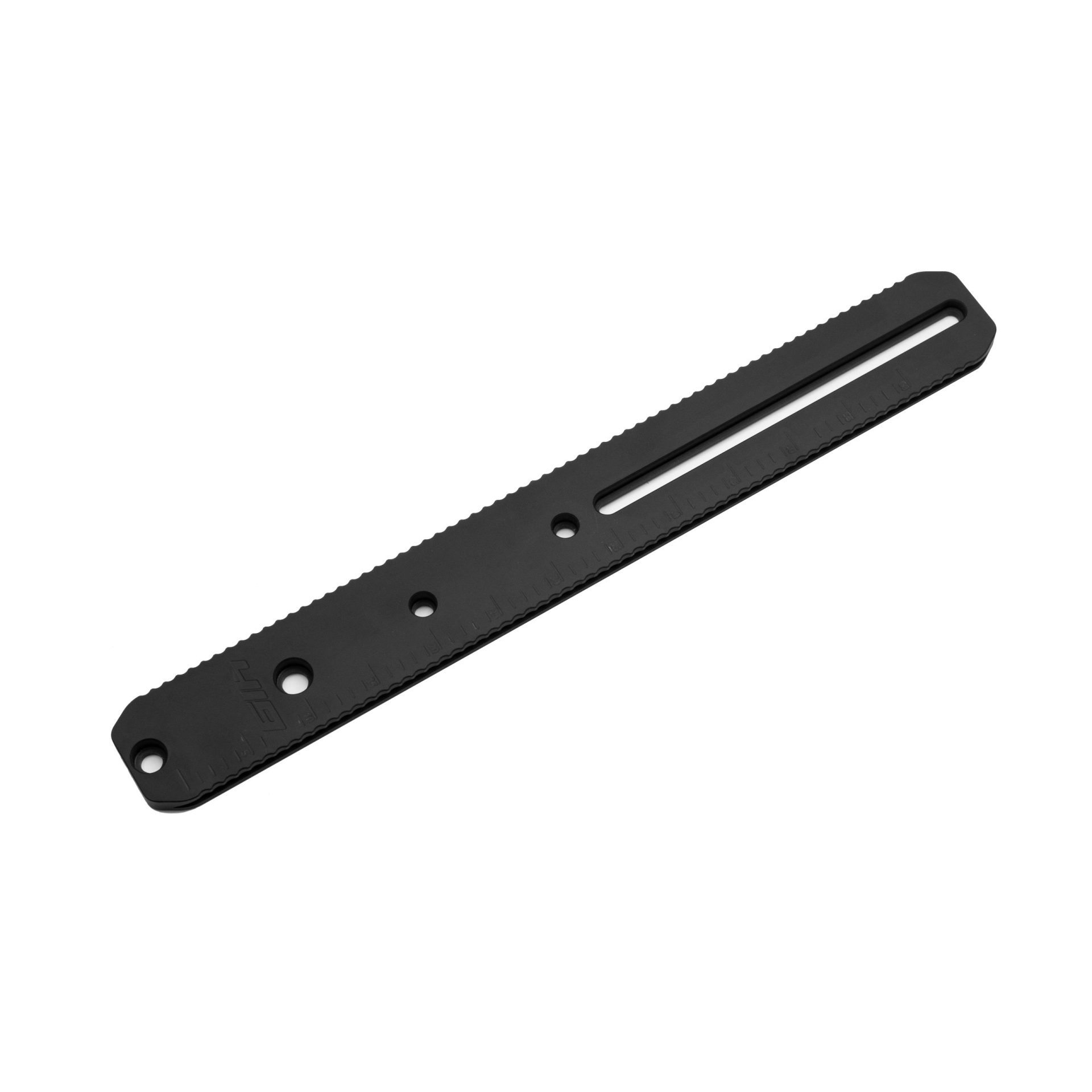

Not sure what an arca rail looks like? Here is an example of one style:

ARCA Rail Example

** Arca rail is not included with the bipod.**

CLICK HERE for clamp head operation instructions.

BIPOD SPECS

-Weighs 21.3 oz.

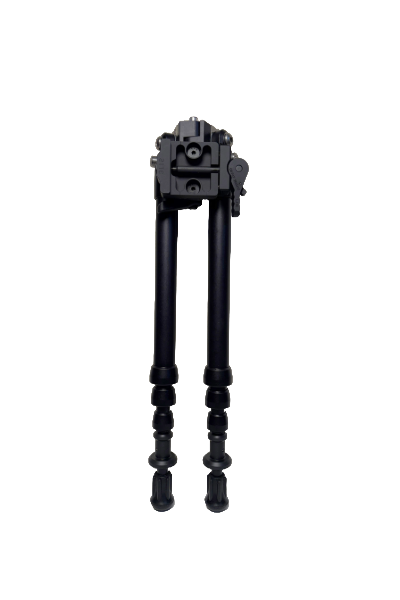

- Stowed length is 13"

- 3-in-1 design (bipod, monopod, and shooting stick)

- Bipod configuration adjusts from - 6" - 27"

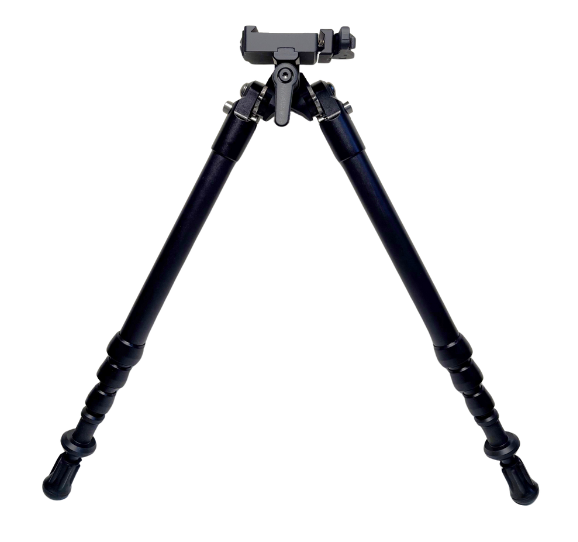

Legs spread and in 45 degree setting - 6" ht.

Legs straight down and spread - 7.25" ht.

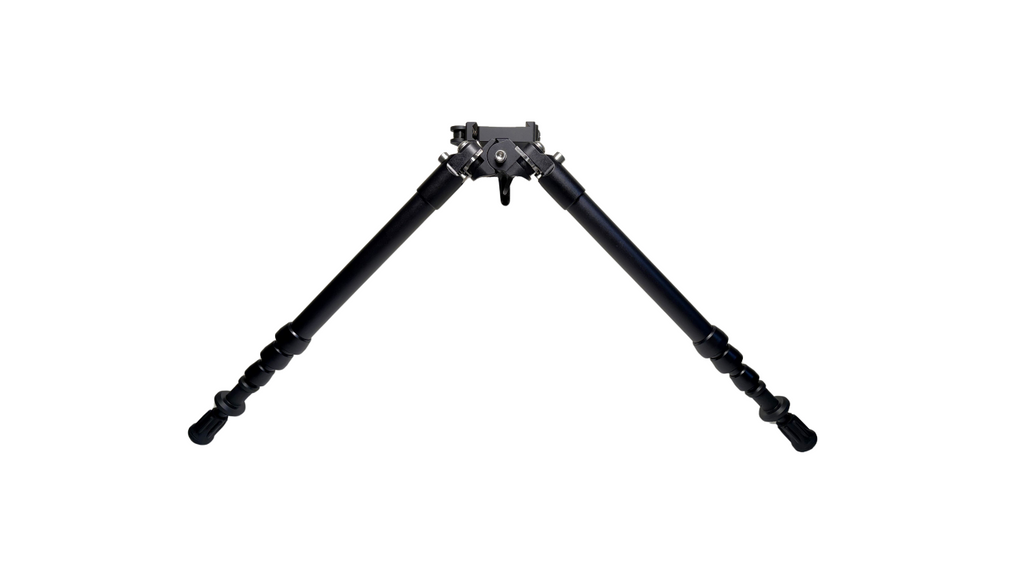

Legs half-way spread and in 45 degree setting - 7.75" ht.

Legs straight down and half-way spread - 10" ht.

Legs 45 degree setting and not spread - 9.5" ht.

Legs straight down and not pulled out - 12.25" ht.

Legs straight down and pulled out completely - 27" ht.

- Monopod configuration adjusts from 14.5" - 30"

- Shooting stick configuration adjusts from 24" - 56"

- Legs that automatically lock at any height

- Incredible height range

- 80 degrees of adjustable cant

- Aluminum and stainless steel construction

- Black, anodized finish

- Made in the USA

- U.S. Patent Nos. 9,903,528; 10,386,011; and 11,313,509
